BMW E31 M60/M62 - Oil and Filter Change

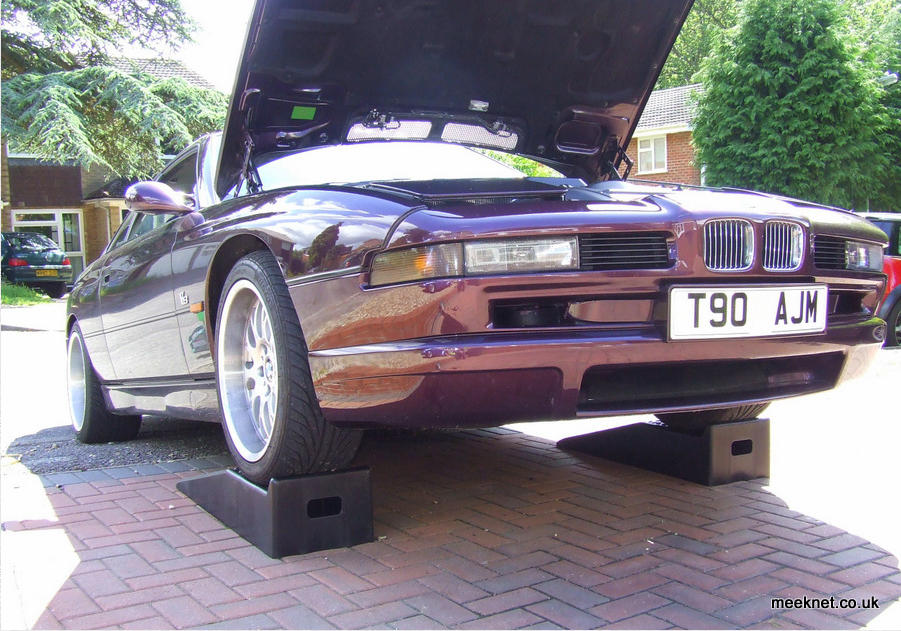

Changing the oil and oil filter on the E31 is pretty straight-forward, but there are a few things that can make it awkward - so here we go. Front of the car up on ramps (I've only found one set of ramps that get under the spoiler, and even then the car has to be half off the kerb, these are similar to Rhino-Ramps but are available in the UK):

Posted Image

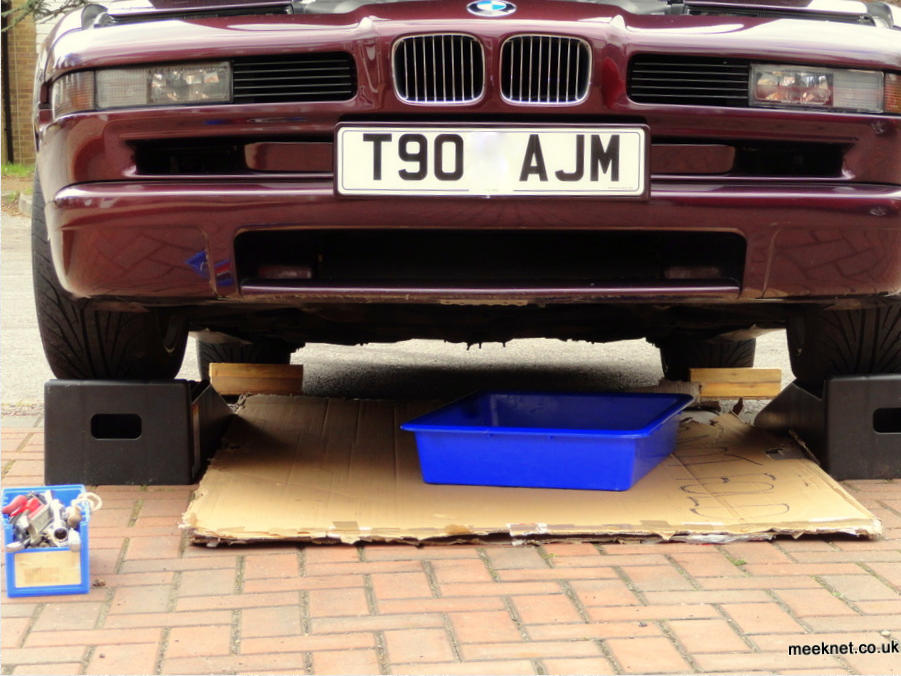

 .......cardboard down just in case of spills and a big oil-catcher ready:

Posted Image

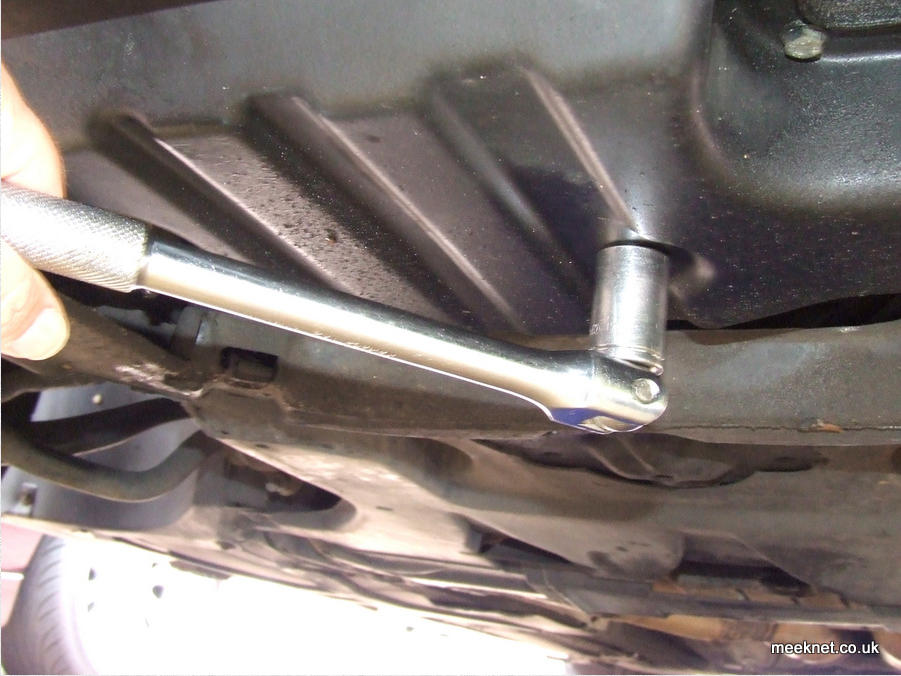

Get your oil tray in position and use a 17mm socket to release the drain plug. These can be quite tight (although they don't need to be), so use an extension rather than heaving too hard on the wrench.

Posted Image

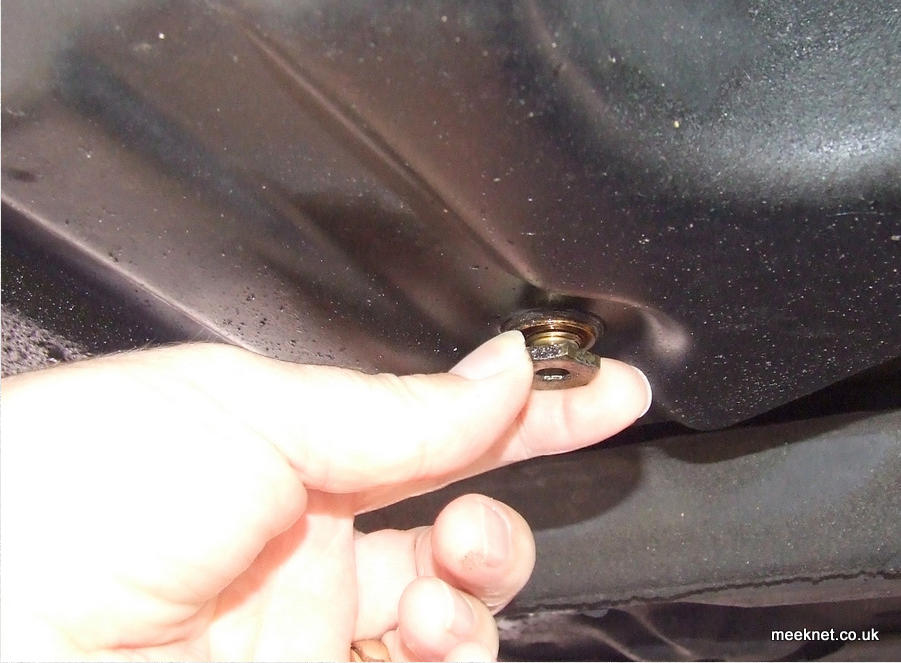

Once the plug is moving, turn the socket wrench clockwise and anti-clockwise until oil works its way into the thread and it is easy to move by hand - you don't want the plug coming undone while you still have the socket on it.

Posted Image

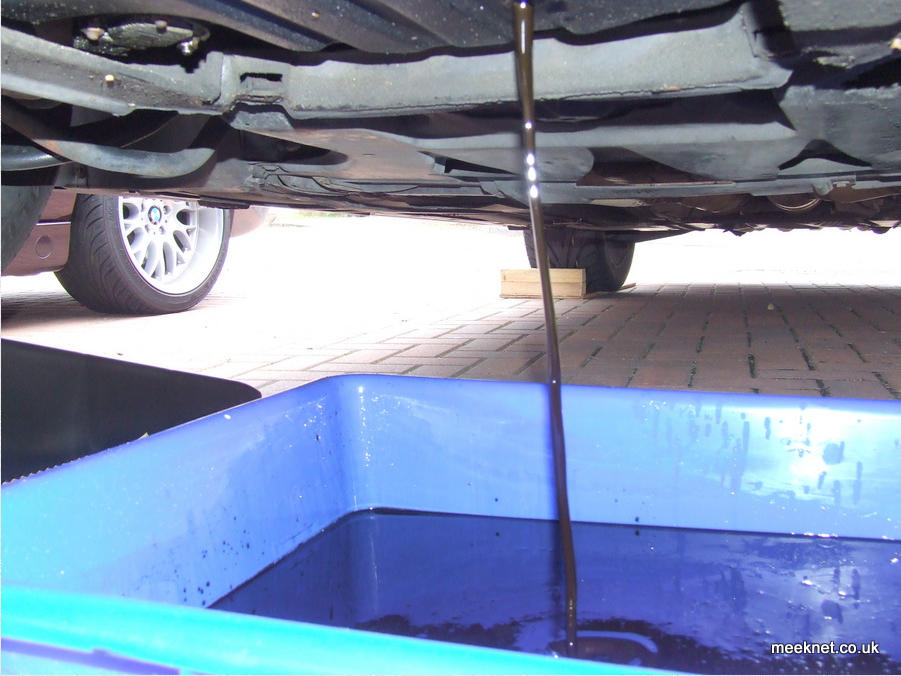

Once the plug is free to turn make sure the tray is in the right place, keep upwards pressure on it and when at the end of the thread whip it out of the way and let the oil out:

Posted Image

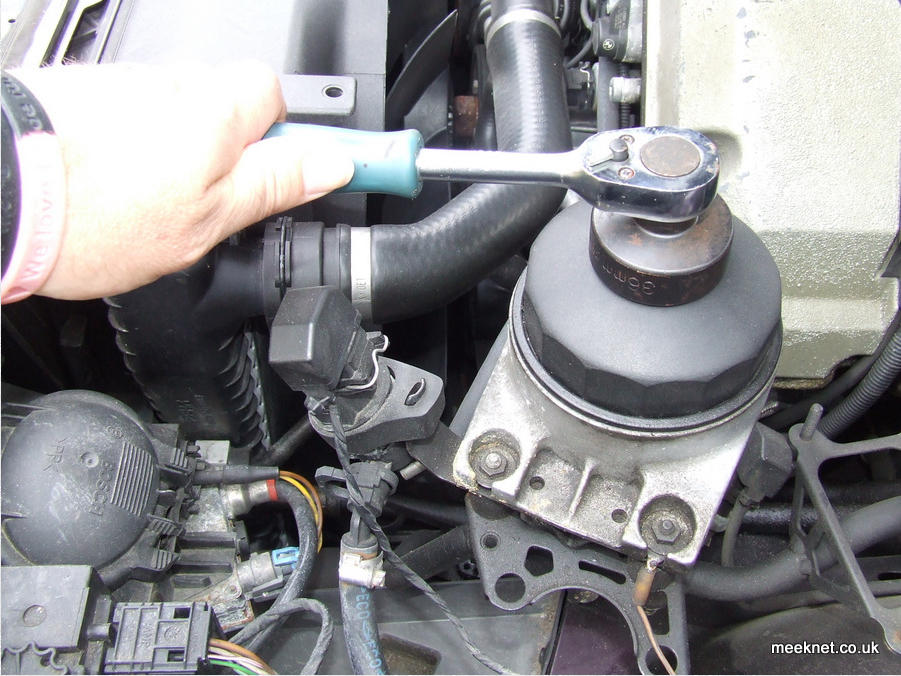

It's a bit windy today so a large tray is needed - once the oil is flowing move to the top of the engine. The oil filter canister has a 36mm hex fitting, the sockets are available from Ebay for a fiver or so. I have used other tools to get it off successfully but needed the socket for the Mini (plus a two-foot breaker bar) so I had it to hand.

Note: The canister is fitted to the bracket via two anti-vibration fixings. Unless you hold the canister it is possible these will tear - make sure the effort to remove the lid is countered by your other hand rather than against the fixings.

When the lid is loosened it lifts the filter at the same time - this opens the drain valve and the oil will drain from the housing. So, open it slowly and allow the oil to drain as the lid raises:

Posted Image

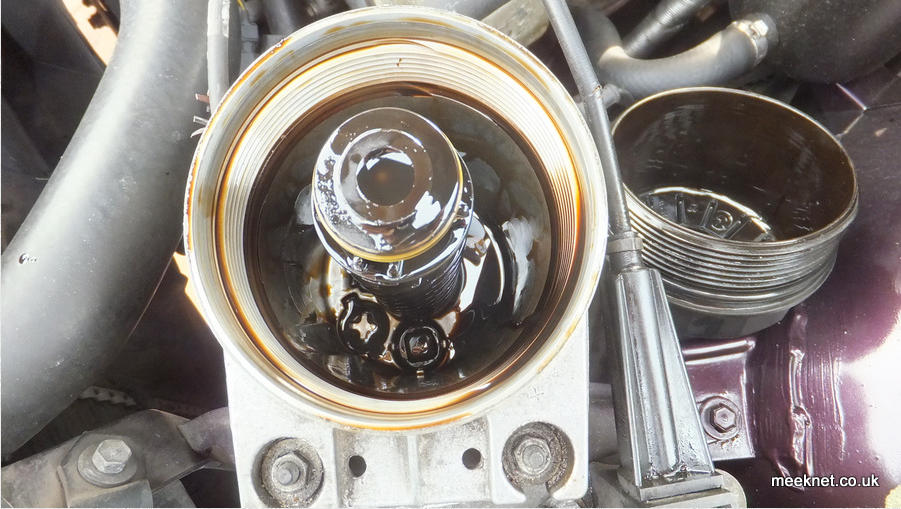

Get a container ready to plonk the lid and filter into as it is going to drip quite a bit of oil. Once the lid is clear of the canister, make sure the oil is draining and then carefully lift the lid and filter up and into the container. The picture below shows what you should see, an empty reservoir with the draining valves at the bottom:

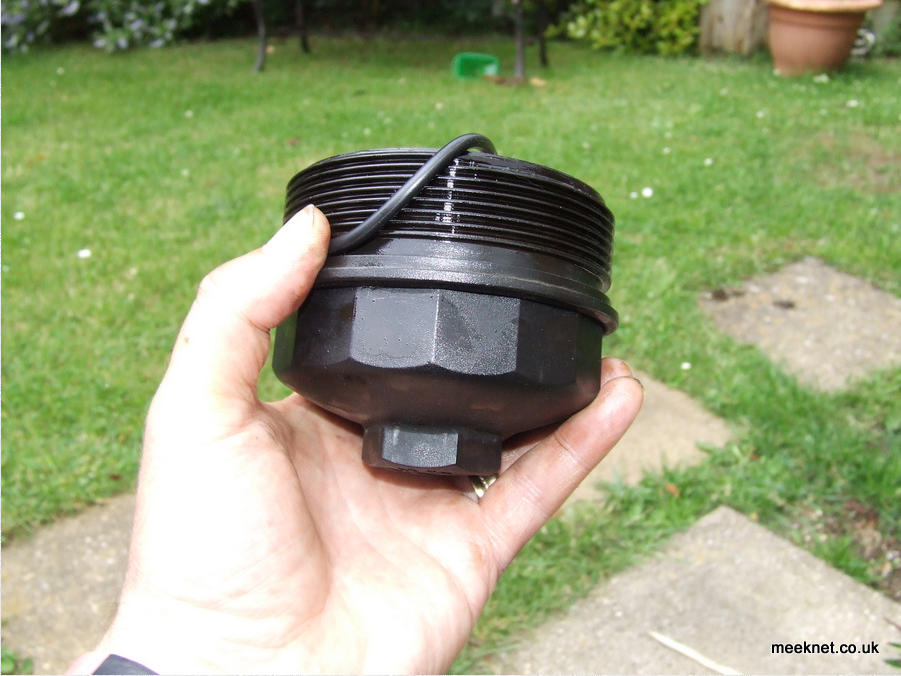

The filter is held in the canister lid by plastic claws and needs a slight tug to remove it. Once separated, clean up the lid and then remove the large o-ring, clean the o-ring groove and then fit the new one:

Posted Image

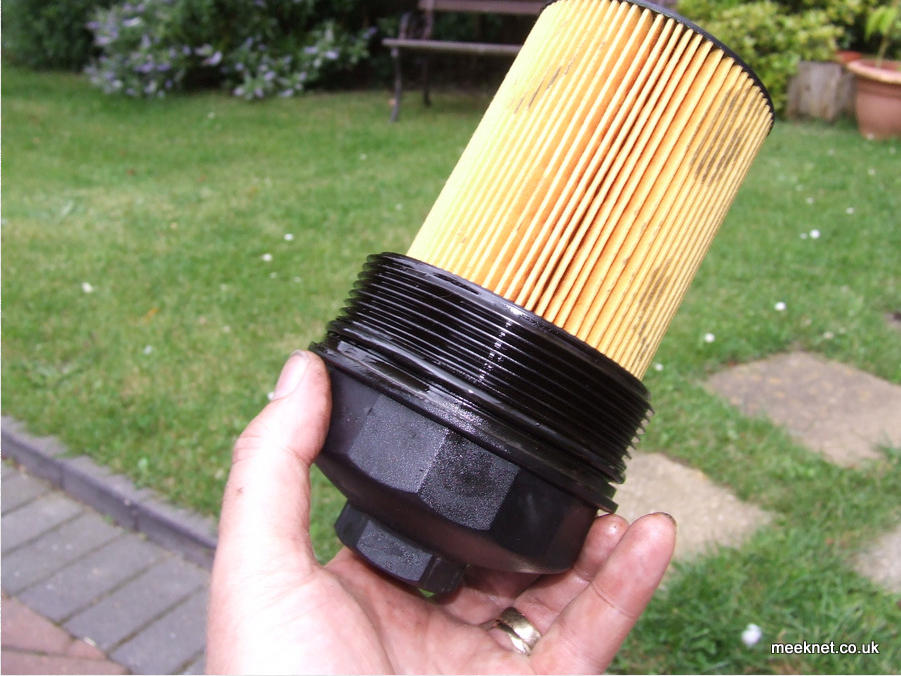

Lubricate the o-ring with a little engine oil and then poke the new filter in making sure it clicks into place:

Posted Image

Make sure the oil has fully left the canister and double-check that you can see the valves at the bottom - sometimes (as happened to me this time), the bottom metal skin of the filter drops off and covers the valves and will have to be removed.

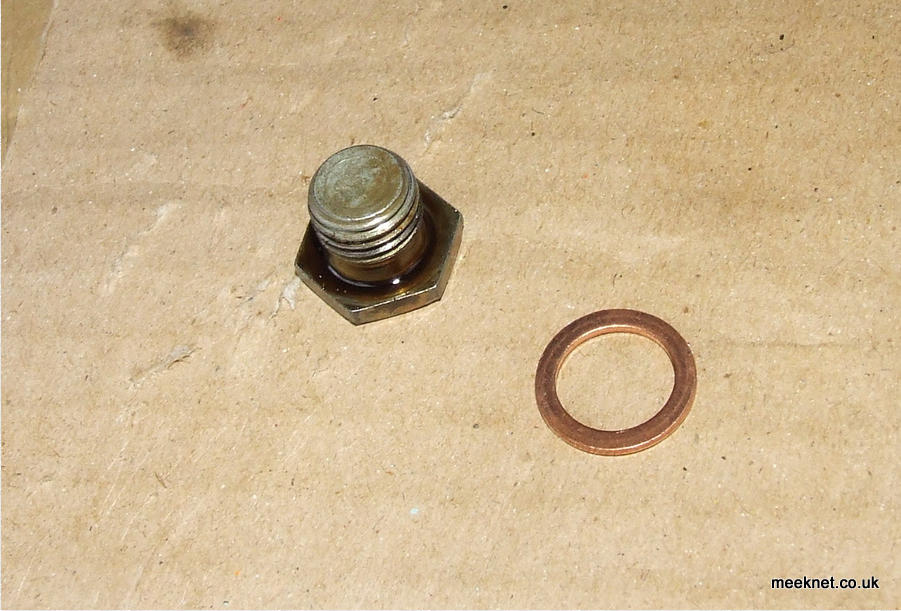

Fit the new copper washer to the drain plug and refit. Do not over-tighten the drain plug, a short wrench will do the job::

Posted Image

Posted Image

Refit the plastic sump cover and then screw the lid and filter into the canister:

Posted Image

As long as there is enough oil on the o-ring the lid will go on easily, the seal is between the o-ring, lid and canister and does not need to be tightened much at all - the short wrench I am using needs just a bit of pressure to reach the correct torque.

Remove the oil cap, use a funnel and add 8 litres of lovely new oil - I'm happy with Castrol GTX 10W 40, seems a bit quieter than the usual Magnatec. Refit the cap, clean up any spills and you are done! Time for a cup of tea.

Note some pictures were from the E38 where not model-specific
